Multimap - switching maps

For maps switching steering wheel buttons is used. Instrument cluster and rpm gauge is used for displaying feedback and results.

Steering wheel buttons

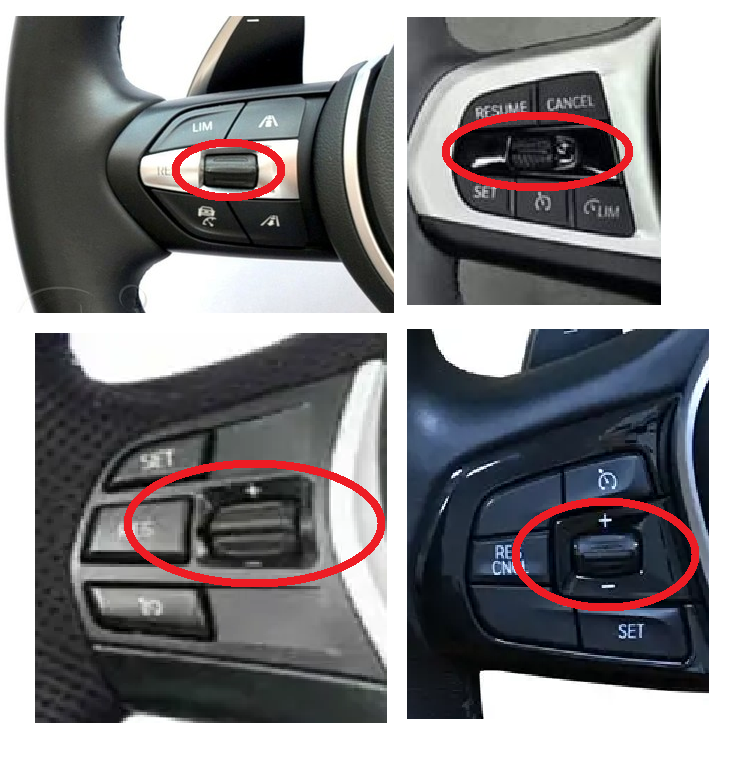

For using "Multimap" menu, cruise-control rocker button is used(left button). By default, rocker button have two positions:

- Short switch up/down(up/down first position)
- Long switch up/down(up/down second position)

And two states:

- Click
- Hold

Working with multimap menu via cruise-control rocker button.

- Short switch up/down(up/down first position) + Hold - used for enter to multimap menu, dive into sub-menu and for selecting maps
- Long switch up/down(up/down second position) + Click - used for choosing(switching) maps

Remind: firstly you are choosing sub-menu(1 - maps, 2 - burbles), secondary you are switching maps.
